Tele Ranger TR1-6D Pro
Advanced 6-button industrial wireless remote control
Product Details

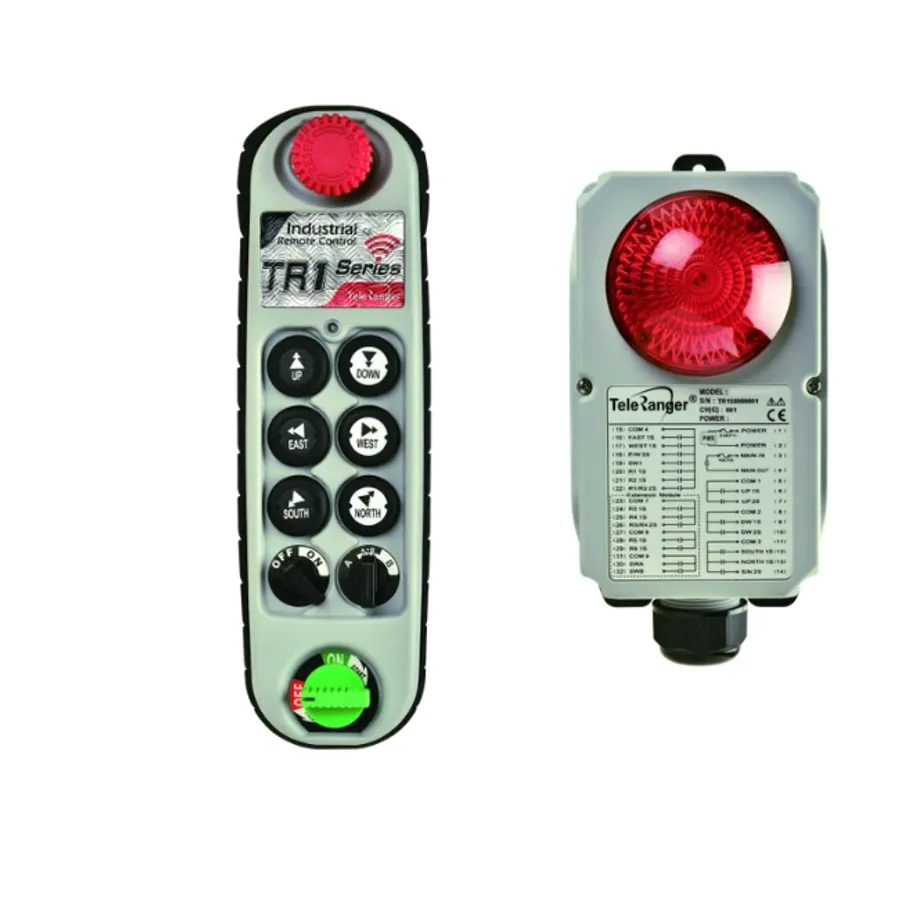

Tele Ranger TR1-6D Pro
What is the TR1-6D Pro?
The TeleRanger TR1-6D Pro is an advanced industrial wireless remote control designed for cranes, hoists, and material-handling equipment. It features 6 double-speed push buttons, a start key, and emergency stop, operating on a secure 433/434 MHz radio link with up to ~100 m range. Built with tough, weather-resistant housing and enhanced safety coding, it delivers reliable, interference-resistant control for demanding industrial environments.
Specifications
| Product | TR1-6D(S) Pro |
| Dimensions | 222x65x49mm (TX) / 255x117x130mm (RX) |
| Weight | 350g (TX) / 900g (RX) |
| Material | Fibre-reinforced plastic |
| Buttons | 6 Double Step (6D); 2 selector switch |
| Transmitter Power | AA size battery x 4 |
| Receiver Power | Hi: AC 28-456V; Lo: DC 10-60V |
| Frequency | 433/434 MHz |
| Emission Power | <10 mW |
| e-Card | Yes |
| Operating Range | Up to 100 meters |
| Operating Temp. | -30°C ~ +85°C |
| ID Code | 4.3 billion (32 Bits) |
| IP Rating | TX: IP67 / RX: IP66 |
