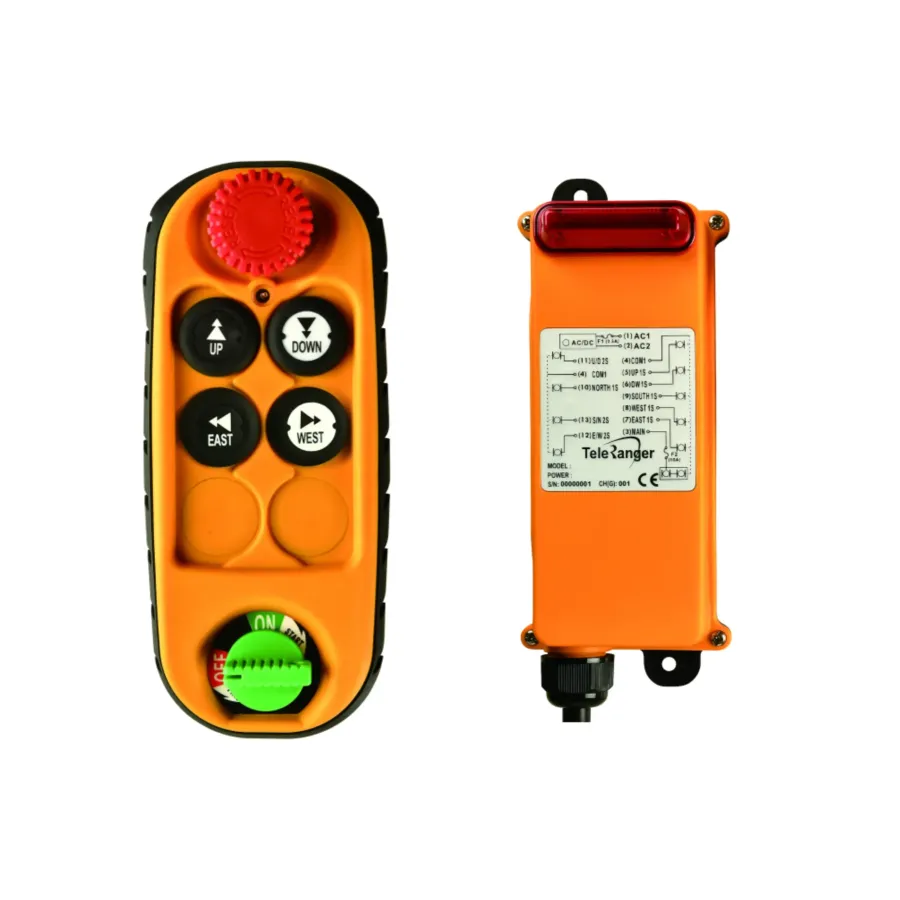

Tele Ranger TR1-4D
4-button double-speed handheld crane remote control
Product Details
Tele Ranger TR1-4D
What is the TR1-4D?
A rugged handheld remote with 4 double-speed control buttons, a start key, and emergency stop, operating on a reliable 433 MHz radio link with up to ~100 m range. Built with durable, weather-resistant housing and secure wireless coding, it delivers safe and precise remote operation in industrial environments.
Specifications
| Product | TR1-4S / TR1-4D |
| Dimensions | 156x65x49mm (TX) / 241x90x70mm (RX) |
| Weight | 215g (TX) / 390g (RX) |
| Material | Fibre-reinforced plastic |
| Buttons | 4 Single Step (4S) / 4 Double Step (4D) |
| Transmitter Power | AA size battery x 2 |
| Receiver Power | Hi: AC 28-456V; Lo: DC 10-60V |
| Frequency | 433/434 MHz |
| Emission Power | <10 mW |
| e-Card | Yes |
| Operating Range | Up to 100 meters |
| Operating Temp. | -30°C ~ +85°C |
| ID Code | 4.3 billion (32 Bits) |
| IP Rating | TX: IP67 / RX: IP66 |
